Quick Start Guide

Example use case with CSipSimple as sip client.

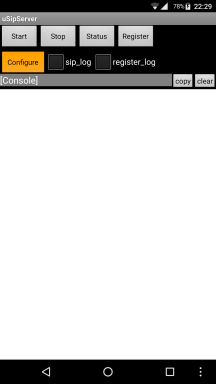

1. Configure uSipServer properties below.
   • Domain : SIP server domain. default value is local IP.

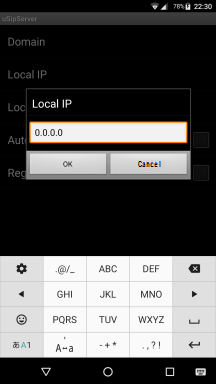

   • Local IP : listening address to SIP message. default value is "0.0.0.0 (any)".
   • Local Port : listening port to SIP message. default value is "5060".

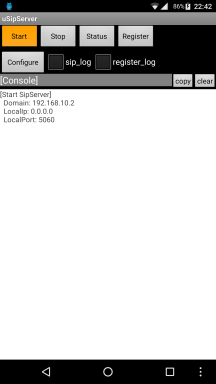

2. Start uSipServer app, and push [start] button.

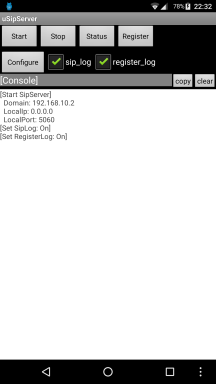

   • sip_log check box : display SIP signal log if it's checked.
   • register_log check box : display REGISTER/UNREGISTER log if it's checked.




3. Start CSipSimple app.


4. Account setting of CSipSimple. (Dial number of this use case is "9999")
   • [menu] -> [Accounts] -> [Add account]
   • Account name = 9999
   • User = 9999
   • Server = (uSipServer IP address)
   • Password = (don't care)
   • Push [save] button.

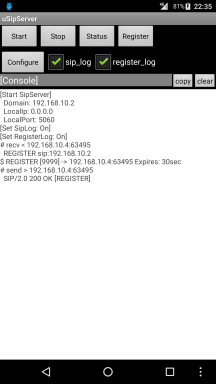

5. Check registered status of a CSipSimple.
   • The client has been registered if "$REGISTER [9999] ..." is displayed on app console.
